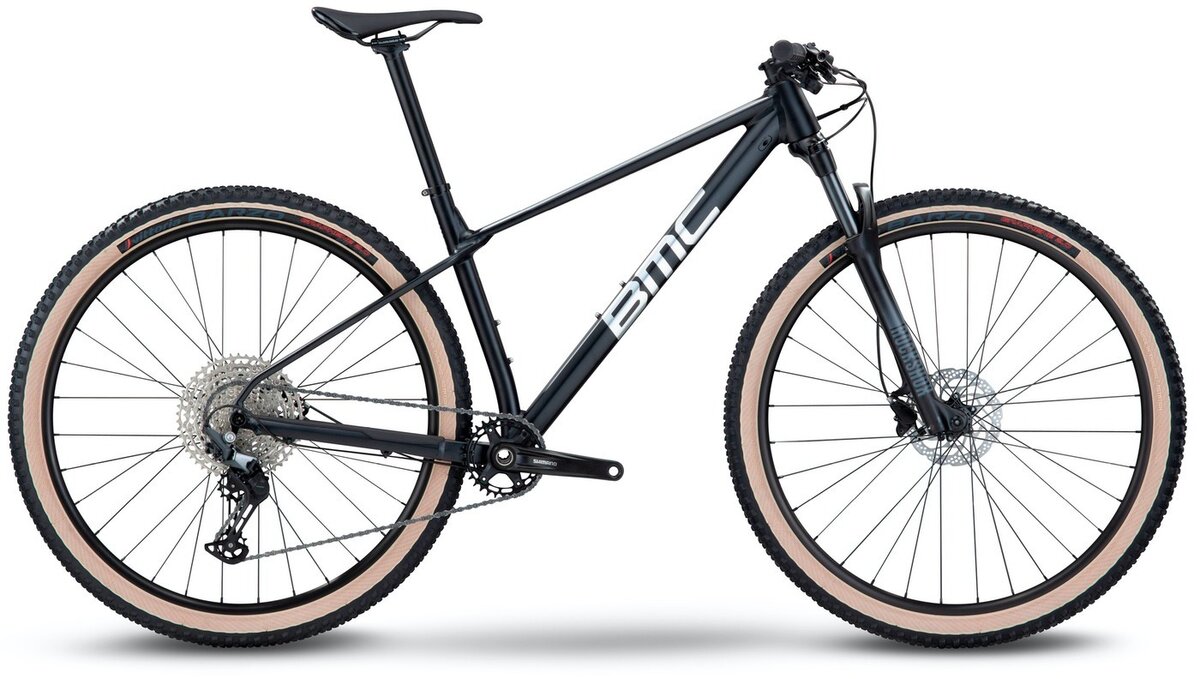

BMC Twostroke AL THREE

BMC Twostroke AL THREE
This item is currently not available.

Details

Whether it's tearing around an XCO track or setting your personal best up a local hill, the Twostroke has you covered.

RADICAL GEOMETRY
- A 67° head angle, long front-end, and 75° seat angle to attack steep and loose terrain with the perfect weight distribution.

INTERNAL CABLE ROUTING
- Fully guided internal cable routing for easy installation and a clean look.

INTEGRATED PROTECTION
- Molded covers on the chainstay, an integrated chain suck plate, and helicopter tape on the downtube ensure durability and a sleek design.

WIDE TIRE CLEARANCE
- Fully compatible with the new generation of wide XC tires.

Sizes:
SmallMediumLargeX-Large
Rider Height CM <170 170-182 180-192 >190
Top Tube MM 597 618 638 658
Wheelbase MM 1112.5 1135 1161 1185
Seat Angle 75 75 75 75
Seatpost Length MM 350 400 400 400
Stack MM 588 598 608 623
Trail MM 109 109 109 109
Rear Center MM 425 425 425 425
Reach MM 422.5 445 465 485
Head Tube MM 87 93.5 106 122.5
Head Angle 67 67 67 67
BB Drop MM 64 64 64 64
Stem Length MM 60 60 60 70
Seat Tube MM 410 440 480 510
Crank Length MM 170 175 175 175
Fork Rake MM 44 44 44 44
Front Center MM 696 715 741 767
Fork Length MM 505 505 505 505
Bar Rise MM 4 4 4 4
Bar Width MM 750 750 750 750
Backsweep 9 9 9 9

Specs

Frame Twostroke AL Premium Aluminum, Hydroformed, Smoothwelded, Internal Cable Routing
Fork RockShox Judy TK R
Rims XCD23
Hubs Shimano MT400 / MT410
Tires Vittoria Barzo 2.25
Bottom Bracket BSA Threaded
Crankset Shimano FC-MT510 32T
Shifters Shimano Deore 12 spd
Rear Derailleur Shimano Deore 12 spd
Cassette/Freewheel Shimano Deore 12 spd 10-51T
Chain Shimano Deore 12 spd
Brakes Shimano BR-MT200 / Shimano SM-RT10 Rotors (160/160 S-M, 180/160 L-XL)
Handlebars BMC MFB03 Alloy 750mm
Stem Forged 6061 Alloy
Seatpost BMC MSP03 - 31.6mm - 0mm Offset
Saddle Selle Royal Seta
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Brushed Alloy / Small 07630027868678 30001092
Black/Brushed Alloy / Medium 07630027868661 30001093
Black/Brushed Alloy / Large 07630027868654 30001094
Black/Brushed Alloy / X-Large 07630027868647 30001095
